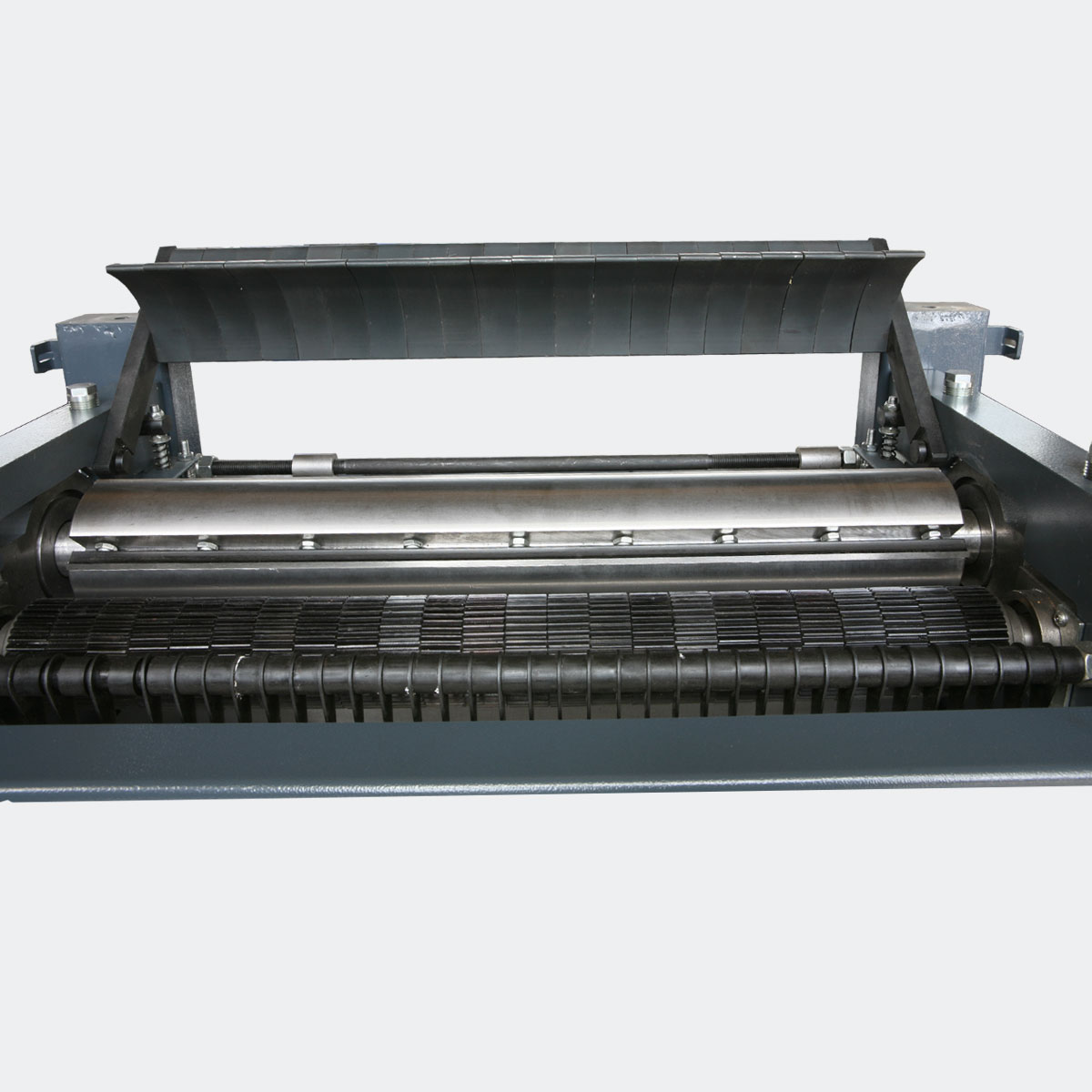

Cast steel helical feed roller feeding smoothly
|

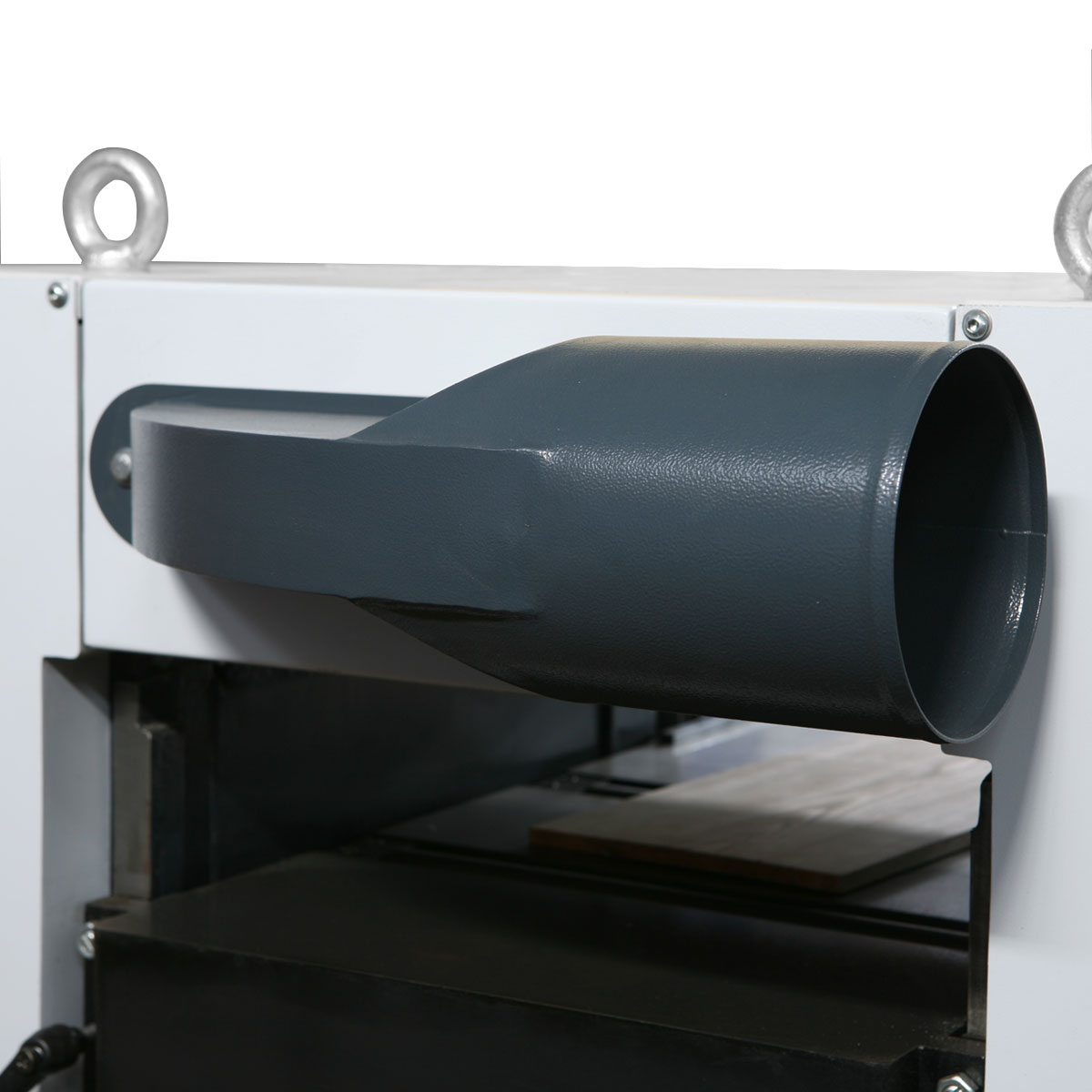

Straight dust more thoroughly
|
 |
 |

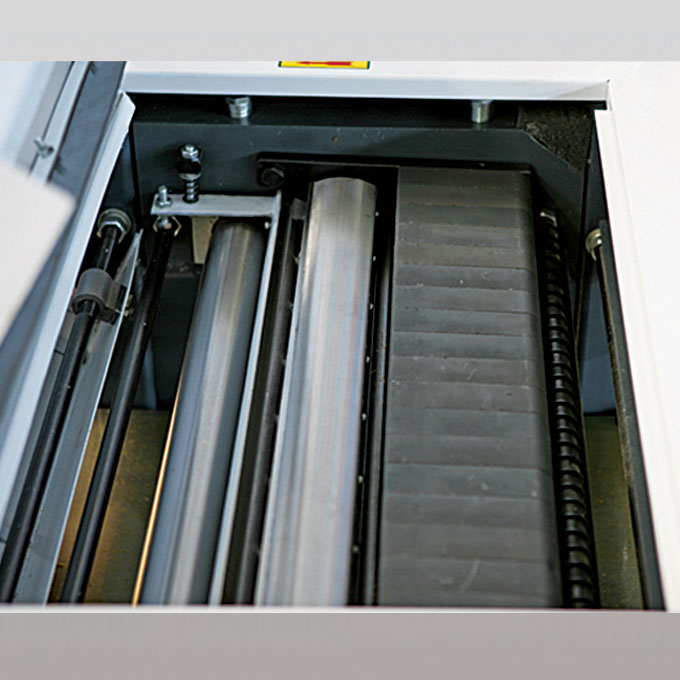

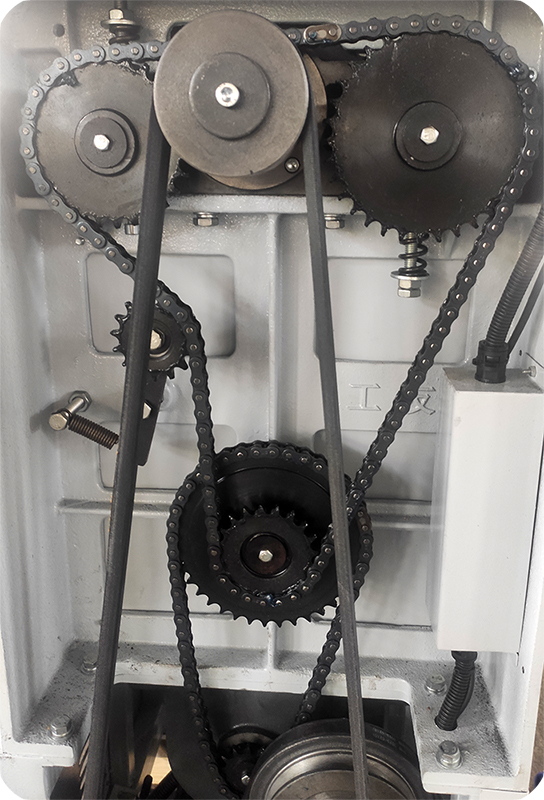

| Special feeding transmission more reliable | Ultra-high speed spindle is smooth for the machining piece |

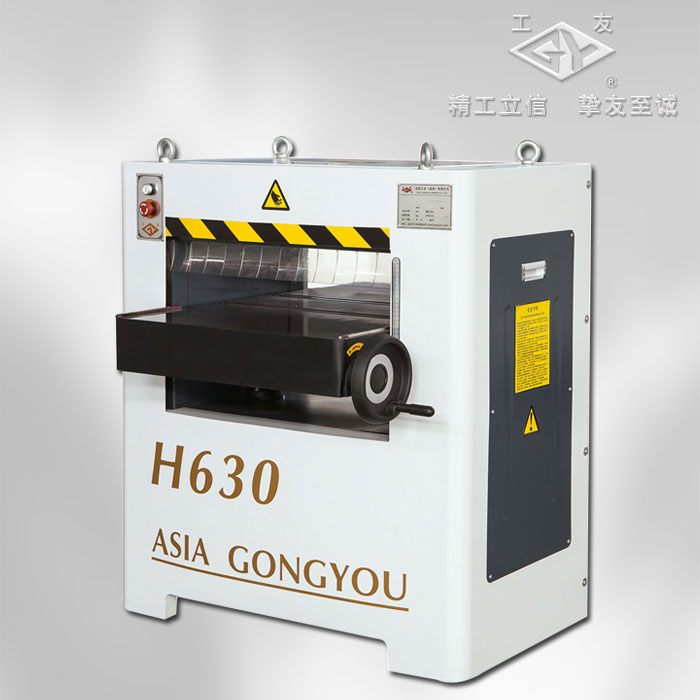

| Technical Specification | Unit | H630 | H500 | H400 |
| Max. planing width | mm | 630 | 500 | 400 |
| Max. planing thickness | mm | 200 | 200 | 200 |
| Max. planing depth | mm | 5 | 5 | 5 |
| Spindle speed | r/min | 5500 | 5500 | 5500 |
| Blade number | 4 | 4 | 4 | |
| Cutting knife shaft diameter | mm | ?105 | ?105 | ?105 |
| Feeding speed | m/min | 7/12 | 7/12 | 7/12 |
| Motor power | kW | 7.5 | 5.5 | 5.5 |
| Dust hole diameter | mm | ?150 | ?150 | ?150 |
| Overall dimensions | mm | 1053×849×1143 | 923×894×1143 | 823×894×1143 |
| Weight | kg | 495 | 450 | 405 |
